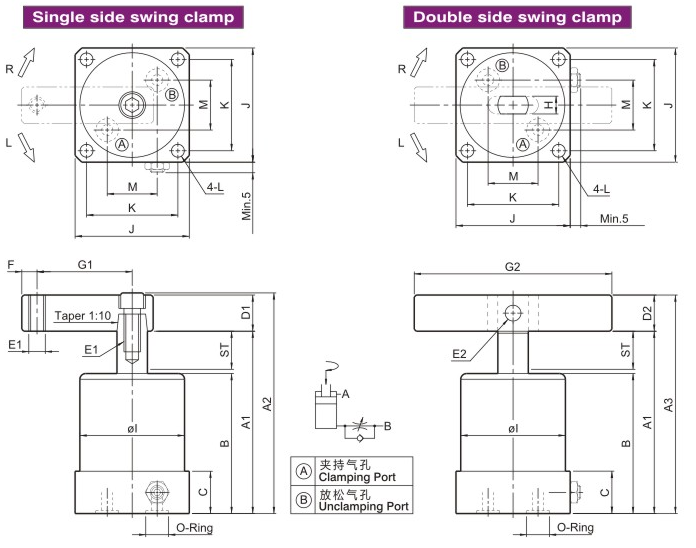

- ASC-FM/MF空压转角缸板式或调速式
- 【Brief】：
- This product is used in special machines and MC fixtures for mass-produced parts to improve production efficiency.
- The main function is that when the air cylinder moves, the middle pressure plate will rotate to the design angle during the piston down-pressure stroke, and then press down along the straight line to clamp the workpiece.
- It is recommended that air pressure angle cylinder be used. A. B inlet should be equipped with flow control valve to avoid excessive speed and to avoid clamping workpiece during angle stroke, which may cause damage to cylinder and internal parts.
- When the length of the pressing plate needs to be increased, please do not exceed 1.5 times the original length.
- Cylinder block is made of aluminium alloy with hard film treatment, smooth inner surface and long service life.
- 【Series】：空压转角缸
