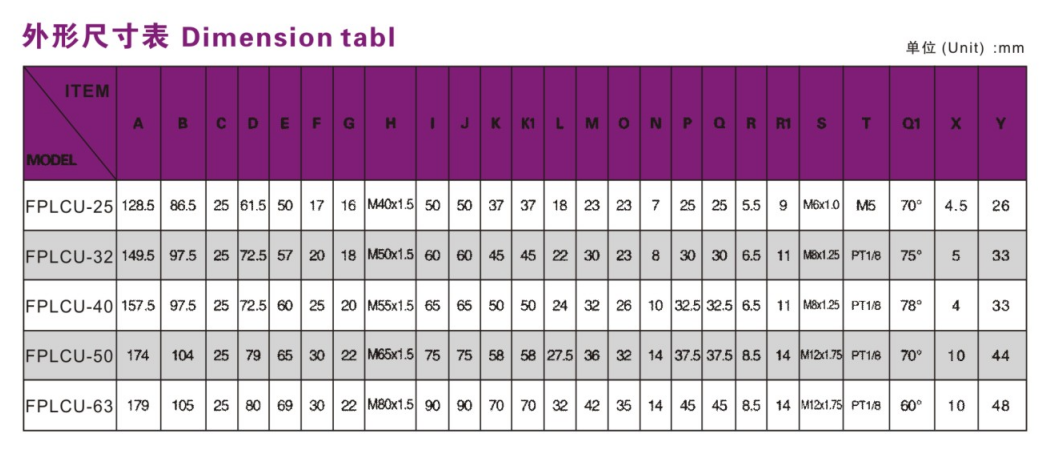

There are five cylinder diameters available for this series of products.&25、&32、&40、&50、&63
This product uses a high-performance sealing ring to avoid leakage of the cylinder and has a long service life.
The lever principle is applied to make the workpiece easy to clamp and improve efficiency.
When the length of the pressing plate needs to be increased, please do not exceed 1.5 times the original length.
Cylinder block is made of aluminium alloy, piston is made of 45 steel, heat treatment, surface branding.
